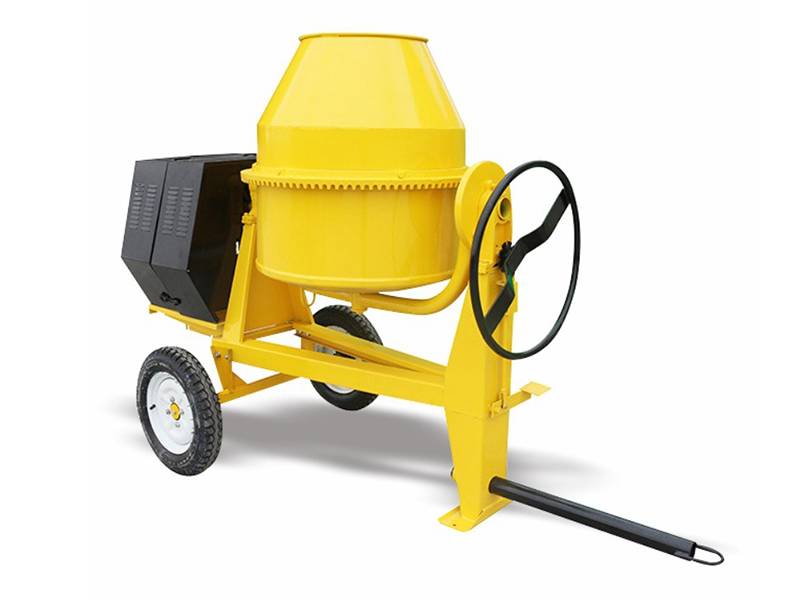

CM400 Mini Concrete Mixer
- Power Supply: Diesel/Gasoline/Electric
- Drum Capacity: 400L
- Mixing Capacity: 320L
- Productivity: 5~6m³/h
- Voltage: 380V, 50/60Hz, 220V, 440V, can be customized
- Power：6-10HP or 3KW
- Application: Construction projects, buildings, roads, bridge projects, airport, water projects and concrete prefabrication factory, etc.
Product Description
CM400 mini portable concrete mixer rotates forward to stir and reverse to discharge. Each drum can mix 320L of concrete, and can produce 5-6 cubic meters per hour. Equipped with two or four wheels, it is easy to move. This mixer can be made into air-cooled diesel engine, water-cooled diesel engine, gasoline engine and electric motor drive according to customer’s needs.
| Model | CM350-2A/2C | CM350-4A/4C | CM400-2C | CM400-4C | CM500-2C | CM500-4C | CM500-4D |
| Drum Capacity | 350L | 350L | 400L | 400L | 500L | 500L | 500L |
| Mixing Capacity | 280L | 280L | 320L | 320L | 400L | 400L | 400L |
| Productivity | 4~5m³/h | 4~5m³/h | 5~6m³/h | 5~6m³/h | 6~8m³/h | 6~8m³/h | 6~8m³/h |
| Bags of Cement Per Batch | 1 Bag Cement(50kg/bag) | 1.5 Bag Cement(50kg/bag) | |||||
| Drum Rotation Speed | 25-30rpm | 25-30rpm | 25-30rpm | 25-30rpm | 25-30rpm | 25-30rpm | 25-30rpm |
| Upper Drum Thickness | 3mm | 3mm | 3mm | 3mm | 3mm | 3mm | 3mm |
| Bottom Drum Thickness | 3mm | 3mm | 3mm | 3mm | 4mm | 4mm | 4mm |
| Mixing Drum Size | φ800×900mm | φ850×900mm | φ950×900mm | ||||
| Tyre Size and Number | 2×(4.00-12) | 4×(4.00-12) | 2×(4.00-12) | 4×(4.00-12) | 2×(4.00-12) | 4×(4.00-12) | 4×(4.00-12) |
| Power Option | Air-cooled Diesel Engine 178FS(6HP) Air-cooled Diesel Engine 186FS(10HP) Water-cooled Diesel Engine R175(6HP) Water-cooled Diesel Engine R180(8HP) Honda Gasoline Engine GX270(9HP) Electric Motor 3KW |
||||||
| Total Weight | 260kg | 280kg | 280kg | 300kg | 300kg | 320kg | 360kg |
| Overall Size(LxWxH) | 1960*1100*1700mm | 2100*1200*1800mm | 2100*1200*1800mm | ||||
| 20GP | 20sets | 16sets | 12sets | ||||
| 40HQ | 40sets | 32sets | 24sets | ||||
Application
Applications of CM Series Mini Concrete Mixer:
1. Small-scale construction projects (eg, house renovations, wall building).
2. Partial repairs of roads, floors, and other infrastructure.
3. Mass production of concrete precast components (eg, bricks, small structures).
4. Simple engineering projects in rural and township areas.
5. Concrete pouring for garden and landscape projects (eg, walkways, flower bed bases).
