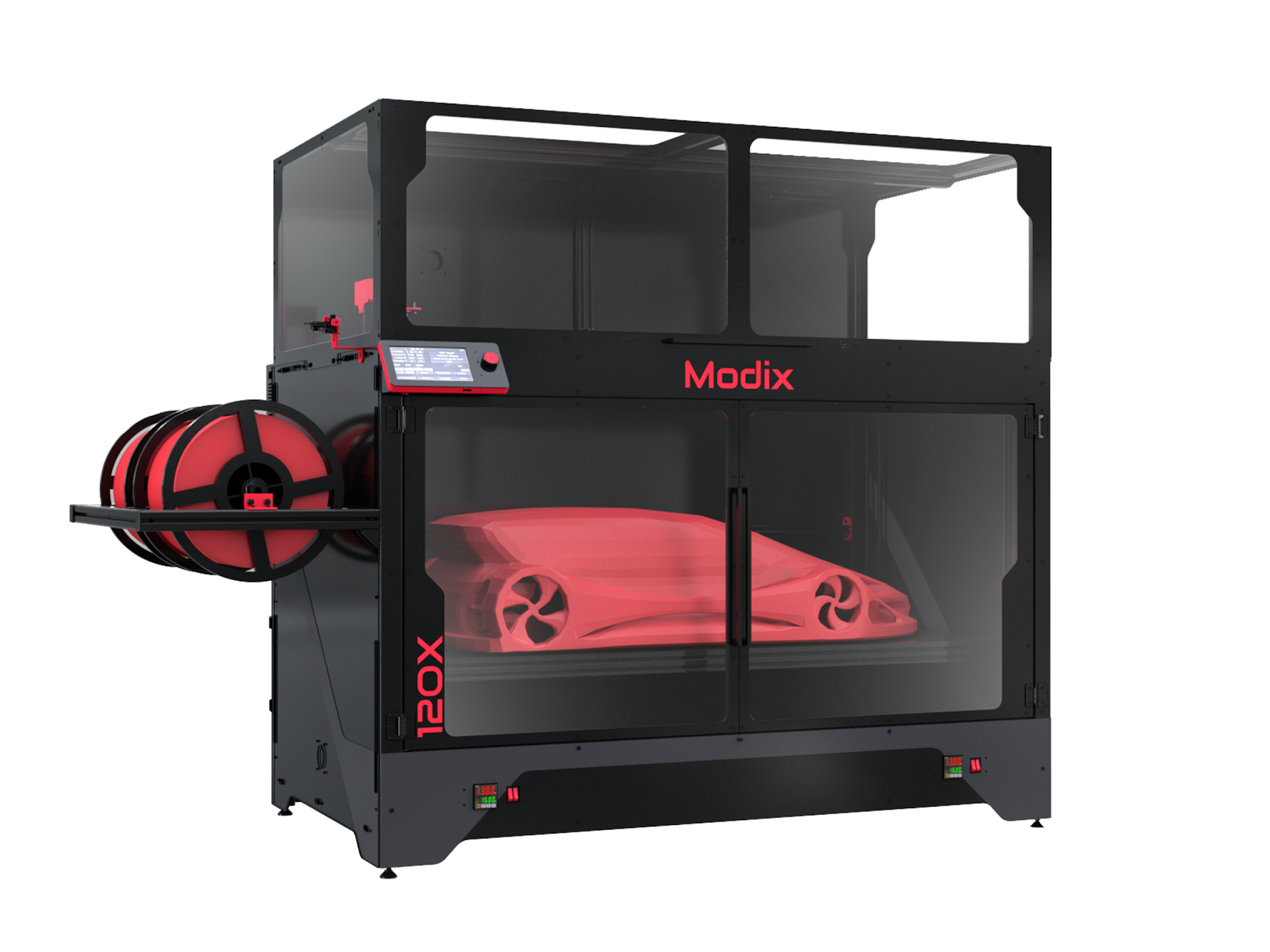

Modix BIG-120X V4 3D Printer Kit
Modix 3D printer kits enable large-volume printing that produces a complete piece in a single pass, reducing post-processing time. Kits include components from specified brands (e.g., E3D, Duet) and feature detailed, step-by-step assembly guides, with a modular design that facilitates future upgrades.
- Print large, single-piece models effortlessly
- Assemble kits with guided, interactive instructions
- Upgrade and customize using modular components
PRINT BIGGER WITH MODIX 3D PRINTER KITS
If you’re an experienced 3D printing user and in need of a large 3D Printer look no further. Modix 3D printers were designed to make achieving your 3D printing goals as simple as possible. Boasting some of the largest print volumes on the market, Modix printers enable users to print very large models in one complete piece – resulting in stronger finished parts and reducing the amount of time you’ll need to spend on post-processing.
Each Modix printer is comprised of the highest quality components and sourced from some of the best-known brands in the industry, such as E3D, Duet, and Hiwin to name a few. In addition to using premium components every aspect of Modix 3D printers, from the Chassis to the Motion system, has been designed with heavy-duty use in mind while also remaining modular enough for any future upgrades and new technologies that may disrupt the market as 3D printing evolves.
KNOW YOUR PRINTER FROM THE INSIDE OUT
All Modix 3D Printers are sold and delivered as self-assembly kits. Purchasing and assembling a 3D Printer kit has many advantages over traditional fully assembled models. While one of the biggest advantages is the hands-on, and in-depth knowledge you will gain of your printer while following the assembly instructions; 3D printer kits also represent a high level of cost savings and flexibility when it comes to selecting where your new machine will fit within in your production facility.
The in-depth knowledge you will gain also ensures that you will have the necessary skills to confidently upgrade, maintain, and eventually customize your Modix 3D Printer – ensuring that your machine will remain operating and continue to play a pivotal role within your workflow for years to come.
Each Modix kit includes a physical copy as well as links to online assembly instructions. These instructions will walk you through the assembly process with detailed textual and visual step-by-step instructions. Online guides also feature video demonstrations for every step as well as rotatable 3D Models of the various sub-assemblies making the assembly process straight-forward and highly intuitive.
UNPRECEDENTED LEVELS OF MODULARITY AND CHOICE
Modularity is at the heart of Modix’s design philosophy. Whether you are deciding on what type of filament or slicing software to you want to use or deciding on what components to upgrade your 3D printer with, Modix believes in giving customers the freedom of choice.
New upgrades and additional components, such as air filters, hotends, and print head configurations are constantly being evaluated for use with the Modix line of 3D printers. Depending on the model, several upgrades may also already come included with your Modix 3D printer, while other components are quickly and easily available for add-on at the time of purchase allowing customers to better match their budgets and 3D printing needs. Additionally, optional customization guides are regularly published and made available through Modix’s online service portal – providing customers with a wide level of support for any upgrades they may want to implement.
Generation 4 – What’s New
Modix Generation 4 introduces advanced capabilities, including internal geometry printing, faster print speeds, reduced post-processing time, and enhanced reliability. These updates expand the possibilities of the Modix ecosystem, ensuring a cutting-edge experience for users.
- Printing Technology – FFF (Fused Filament Fabrication)
- Delivery – Self-assembly kit. The assembly guide includes easy-to-follow videos and online 3D models that can be rotated and zoomed.
- Unified Core concept- All our printers share the same core design based on Modix BIG-60 V4.0.
- Upgrade – New versions are designed with backward compatibility in mind. Owners of Modix’s printers enjoy upgrades from time to time in both configurations and hardware.
Chassis & Enclosure
Crafted from solid 40×40 T-slot aluminum profiles, the chassis features powder-coated laser-cut aluminum brackets and joints. An optional 3mm black Aluminum Composite Panel (ACP) enclosure is available for select models, enhancing stability and environmental control.
- Solid 40X40 T-slot aluminum profiles
- Powder coated laser cut aluminum brackets and joints
- Enclosure – Closed enclosure made of 3mm black Aluminum Composite Panels (ACP). Enclosure is an optional add-on for BIG-60, BIG-120X & BIG-120Z and a default option for BIG-Meter and BIG-180X.
Electronic Controller
Powered by the Duet 2 WiFi controller, a reliable and widely supported platform for professional 3D printers. Benefit from a high-performance 32-bit processor, quiet TMC2660 stepper drivers, and flexible connectivity options. Dual extruders and external SD card support contribute to a seamless printing experience.
- Powerful 32 Bit Processor
- Dedicated WiFi module with external antenna
- Quiet TMC2660 stepper drivers, up to 256 micro-stepping.
- High-speed uSD card and support for a second external SD card if required.
- Dual extruders are controlled on the main board, up to 5 additional stepper motor drivers are controlled on the DUEX expansion board.
- High Power rating: Each stepper driver is capable of 2.8A motor current, currently limited in software to 2.4A.
- Access the printer via a PC, tablet or smartphone on a local network.
- Set up and control your printer through the web interface.
Griffin Print Head Advancements
The Griffin Print Head, previously offered as an optional upgrade, now takes center stage as the default print head across our entire printer lineup. This transformative addition represents a significant leap forward in our offerings, boasting a fusion of innovation and engineering excellence. The Griffin Print Head, a collaborative creation comprising a bespoke Bondtech extruder (based on the BMG model) and a pioneering hotend meticulously crafted by Modix, encapsulates a series of pioneering enhancements.
Enhanced Performance and Versatility
- High Flow Rate & Elevated Printing Temperatures: Empowered by a dual drive-gear system, the Bondtech extruder seizes filament from both flanks, ushering in augmented flow rates and enhanced compatibility with elevated printing temperatures. The heat-block, meticulously forged from nickel-coated copper, accelerates heat transfer efficiency, facilitating seamless operation at higher temperatures. A cutting-edge Slice Engineering Bi-Metal heat-break extends the melting zone within the heat-block, predominantly crafted from copper. The integration of an advanced PT-1000 temperature sensor further equips the print head to confidently navigate temperatures up to 500°C, backed by the stout resilience of hotend components validated for up to 500°C and tested successfully at 340°C.
- Increased Reliability: Confronting the challenges of large-scale 3D printing head-on, the new print head bolsters reliability by introducing a robust heat-block mounting configuration. This arrangement, bolstered by a tri-faced mounting structure, offers inherent rigidity and resolute resistance against potential mishaps such as scratching or collisions with voluminous models. The formidable heat-block bracing, stemming from this novel design, stands as a bulwark, mitigating the risk of damage.
- Streamlined User Experience: The redesigned print-head architecture simplifies nozzle replacements, facilitated by the secure, single-handed heat-block detachment. This seamless process ensures effortless transition between various nozzle diameters, amplifying user convenience.
- Effortless Filament Adaptation: The novel mounting bracket design and the D shaft configuration of the Slice Engineering heat-break synergize to enable swift and hassle-free substitution of the entire filament melting subsystem. This innovation empowers users to swiftly transition between dedicated setups tailored for specific filament types—be it abrasive carbon-infused filament or PLA prototypes.
- Space-Savvy Design: The enhanced print-head design retains the compactness of its predecessor while preserving generous Z-axis travel capabilities. This thoughtful evolution harmonizes seamlessly with the extensive range of E3D Volcano nozzles, encompassing an array of sizes and materials.
- Smart Calibration: The upgraded print-head enables automatic Z offset calibration between the nozzle and the BL Touch probe, streamlining the calibration process. A dedicated sensor ensures accurate calibration and stores the relative distance between the probe and the nozzle.
Note that for temperatures surpassing 300°C, it is essential to replace the brass nozzle with a higher-temperature compatible alternative.
IDEX Dual Printing Add-On
With Independent Dual Extruder (IDEX) technology, the Modix printer can print models with internal geometries and dense support layers. This add-on reduces post-processing effort and enhances success rates for complex prints.
The IDEX solution is available as an optional add-on for all Generation 4 printers but is included in this professional bundle, providing the following components:
- Secondary Printing Subsystem: Includes the Griffin print head, clog detector, PTFE, and spool mount.
- Motion System: Incorporates a secondary Y-axis motor along with necessary components such as belts and pulleys.
- Metal Brackets: Equips both the Y-axis and print heads with sturdy metal brackets.
- Wires, Drag Chains, and Optical End-stops: All essential wiring, drag chains, and optical end-stops are thoughtfully included.
Automatic Filament Changer
The IDEX system doubles as an automatic filament changer, streamlining print workflows and ensuring uninterrupted operation. When utilizing the same filament for both print heads, the printer adeptly switches between them as soon as a filament run-out is detected. This innovation offers a host of advantages:
Enhanced Efficiency: Addressing a key challenge in 3D printing, the incessant need for vigilant monitoring and intervention is mitigated. This is particularly crucial when prolonged printing sessions risk an overnight stall due to the depletion of filament. The Modix IDEX Filament Changer steps in as a solution, enabling the printer to autonomously swap filament spools. The result is an uninterrupted, round-the-clock operation, minimizing downtime that would otherwise be required for manual intervention.
Elevated Print Precision: The advantages of the Modix IDEX Filament Changer extend beyond time-saving. By obviating the need to open the enclosure for manual servicing, the printer retains its chamber temperature, preventing potential shrinkage of partially printed models. This pivotal aspect enhances print quality by maintaining optimal conditions, reducing defects, and fostering the creation of superior prints. Elevating your 3D printing endeavors to new heights becomes feasible with the Modix IDEX add-on.
Super High Flow Hotend
Opt for the Super Volcano hotend. The high-flow Super Volcano hotend is an optional add-on tailored for customers engaged in printing large and robust objects at high speeds. This add-on is particularly advantageous for crafting thick vase-mode-style objects that demand structural integrity.
Built upon the foundation of the E3D Super Volcano heat-block and nozzles, this upgrade caters to efficiency and performance. Equipped with an 80W heater and thermistor, the enhanced version arrives with a meticulously crafted CNC-made mounting bracket. This bracket not only ensures the protection of the elongated heat-block during printing but also bolsters stability. As a result, this integration significantly elevates print quality by minimizing vibrations during acceleration, resulting in superior output.
Includes:
- E3D SuperVolcano Heater Block
- 1mm Brass Nozzle
- Slice Engineering Bi-Metal Heat-Break
- 80W Heater
- CNC Adapter
- Blower Fan & Duct
Tilt Screen & Emergency Button & Frontal Power Switch
This trio of features comes as a standard inclusion for the BIG-Meter and BIG-120Z models while being optionally available for all other printers.
Tilt Screen: The tilt screen is mounted on an articulated arm, offering a user-friendly convenience. This functionality proves useful during critical tasks such as print head calibration and maintenance routines. Its versatility allows you to effortlessly adjust the screen’s orientation – left, right, upward, or downward – to ensure optimal visibility and ease of use.
Emergency Reset Button: Complementing the tilt screen upgrade, an emergency reset button now resides on the machine’s front panel. This strategic placement provides swift access and ensures immediate interruption of print jobs whenever necessary, contributing to a heightened level of control and safety.
Frontal Power Switch: An easily accessible power on/off button is positioned at the front. This practical addition proves especially advantageous when the printer is situated in confined spaces. The simplified access enhances user convenience and streamlines operations.
Experience the convenience and practicality of this feature trio, transforming your 3D printing experience with enhanced control, safety, and ease of use.
Motion System
Benefit from precision motion with HIWIN linear guide rails, Z ball screws, reinforced belts, and NEMA motors. Achieve print speeds up to 350 mm/sec for fast and efficient production.
- HIWIN MGW9H linear guide rails
- Four Z ball screws for Z axis movement. 12mm diameter, 4mm pitch
- 9 mm width Gates GT2 timing belt, reinforced with fiberglass
- Motors: X & Z Axis: NEMA-23, Y Axis: NEMA-17
- Mechanical position accuracy: X-10 Micron, Y-10 Micron, Z-0.5 Micron
- Print speed (based on 0.4mm nozzle):
- Up to 100 mm/sec – normal quality
- Up to 250 mm/sec – draft / non functional infill
- Up to 350 mm/sec – travel
- Larger nozzles normally are required to print slower but provide parts much faster due to a reduced number of layers.
Power and Electronics
Support for both 110V and 230V power supplies ensures compatibility. A robust Meanwell power supply with protections ensures safe and reliable operation.
- Support both 110V and 230V
- For electronics: Meanwell 24V 280W Power Supply
- Protections: Short / Over-load / Over-voltage / Over-heating.
- No load power consumption<0.5W
- LED indicator for power on
- Aviation grade switches and connectors
- Heat Bed AC powered heater 1370 Watt
- PID bed heater controller by Autonic
- BIG METER and 180x require 208-240V, 32A connections
- North America customers: NEMA L6 30P 30A outlet
- EU/AU/UK customers: IEC 309 32A Blue (2P+E) outlet
- Tripp Lite PDU for meter and 180x
- North American customers: https://www.tripplite.com/support/PDUH30HV
- EU/AU/UK customers: https://www.tripplite.com/support/PDUH32HV
Print Surface and Removable Magnetic Bed
The Alcoa Mic6 milled cast aluminum plate offers a consistent and level print surface. An optional removable magnetic bed add-on simplifies print removal and maintenance.
Modix printers come with a default PEI sheet that releases prints when the bed cools down. The removable magnetic bed add-on eliminates waiting and spatula work – objects can be instantly removed by bending the spring steel plate.
The add-on has an adhesive magnetic sheet for the aluminum bed plate and a removable spring steel plate on top. The flexible spring steel plate is dual-sided: one side is textured with PEI powder coating, while the other is smooth with a glossy PEI sheet for a polished finish.
- 6.35mm thick, Alcoa Mic6 milled cast aluminum plate, made in the USA.
- AC powered bed heater 1370 Watt (1,200 Watt for 110V users). Requires a dedicated independent 15A AC source.
- Dual heating zones. Inner 200X200mm size for small objects and lower power consumption.
- Max temperature – 110oc (with enclosure)
- Print surface – PEI film with 3M high temp adhesive sheet.
